Kefa KF2EDGKM - 3.5/3.81 Hot Sale Pcb Pluggable Terminal Block 3.5mm Electric Plug Connector

The KEFA KF2EDGKM is a high-quality 3.5mm/3.81mm pluggable terminal block designed to make electrical connections simple, secure, and efficient. This product is part of KEFA's well-known line of electrical connectors, trusted worldwide for durability and reliable performance.

This terminal block is made for use in various electronic and electrical devices. It helps users easily connect wires to circuit boards, making installation and maintenance quick and hassle-free. The pluggable design means you can easily plug and unplug the connector without the need to unscrew or cut any wires. This feature is especially useful when you need to replace parts or troubleshoot connections.

The 3.5mm and 3.81mm sizes refer to the pitch, or the distance between the pins on the connector. These sizes are common in many electronic devices and control systems, making the KF2EDGKM a versatile choice for many different applications. Whether you’re working on a power supply, industrial control equipment, or home automation projects, this terminal block provides a reliable connection.

Made from strong, insulating plastic materials, the terminal block is designed to withstand heat and physical stress. The metal parts inside are made of high-quality copper alloy, which ensures good electrical conductivity and reduces the chance of connection failures due to corrosion or wear.

Installing the KEFA KF2EDGKM is straightforward. The terminal block securely locks onto the PCB (printed circuit board), and the wires are easily inserted and tightened using screws. This screw connection provides a stable hold that prevents wires from coming loose, even in environments with vibration or movement.

One of the key advantages of this KEFA terminal block is its compact size, allowing it to fit well into tight spaces without compromising on performance. Despite its small size, it can handle a decent amount of electric current, making it suitable for both low and medium power applications.

The KEFA KF2EDGKM 3.5/3.81 Hot Sale PCB Pluggable Terminal Block is a practical and reliable electrical connector. Its easy-to-use pluggable design, durable materials, and compatibility with standard PCB sizes make it an excellent choice for electronics manufacturers, engineers, and hobbyists alike. Whether you’re upgrading existing equipment or building something new, this terminal block offers a safe and effective solution for secure electrical connections

Products Description

Pcb smd terminal block KF2EDGKM - 3.5/3.81
Pitch	3.5/3.81mm/.138"
Poles	2-24P
Screw	M2 Steel, Zinc plated
Pin header	Brass, Tin plated
Wire cage	Brass Ni plated
Housing	PA66, 94V-0
Rated voltage	300V
Reated current	8A
Withstanding voltage	AC1250V/1Min
Wire range	16-28AWG
Temperature range	-40°C~+105°C
Max Soldering	+250°C for 5 sec
Torque	0.2Nm/1.8Lb-In
Strip length	7-8mm

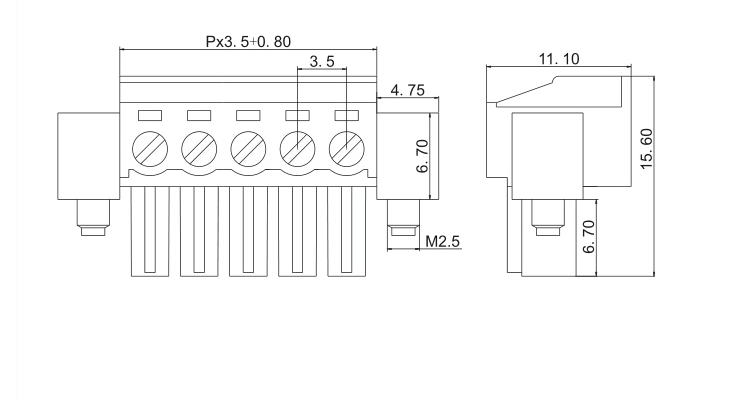

Draw:

Features:

Small pitch to save space
Low structural height
Large wiring capacity, can be connected to the section area of 1.5mm² flexible wire
The plug socket is protected against wrong insertion and dislocation
We are manufacturing factory. If you need bulk production or custom made, please contact us

Advantage:

1. Rich selection of connector, more than 100 experienced mould processing staff Equipment imported from Japan, Germany, Switzerland, Taiwan
2. Specializes in manufacturing connector more than 19 years
3. Have long and Rich cooperation experience with Samsung, whirlpool, Midea
4. Almost get all of the certification for connector, such as UL, SGS, MSDS, CE, ISO9001, ROHS, REACH, CQC, TUV, PAHS, PFOS, PFOA etc
5. replace JST, Molex, YEONHO, Tyco, AMP, KET, JWT, JMT, Cvilux, GTK etc. and short delivery
6. competitive price
7. ISO 9001:2008-certified factory equipped with automated assembly lines
8. Custom-made orders welcome here

More Products

Company Profile

Our Equipment & Certifications

Production Process

Why Choose Us

Packaging & Transportation

FAQ

Q1. Can I have a sample order for Terminal blocks

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Q2. What about the lead time

A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than 100K pieces

Q3. Do you have any MOQ limit for terminal blocks

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional

Q5. How to proceed an order for Terminal block
A: Firstly, let us know your requirements or application
Secondly, We quote according to your requirements or our suggestions
Thirdly, customer confirms the samples and places deposit for formal order

Fourthly, We arrange the production

Q6. Is it OK to print number on the terminal block

A: Yes. Please inform us formally before our production and confirm it firstly based on our sample

Q7: Do you offer guarantee for the products
A: Yes.
