Pcb connector terminal block

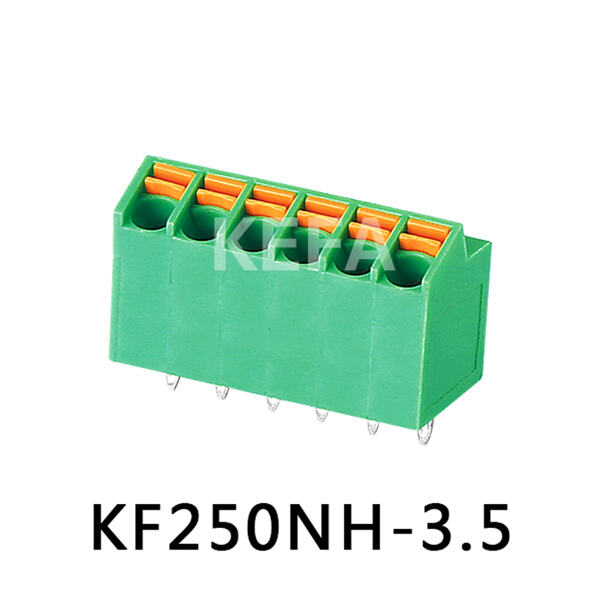

Printed Circuit Board (PBC) is basically like a puzzle that makes electronic devices work properly. This is a small piece of the bigger puzzle, the KEFA pcb connector block is a way to connect various points on the circuit board to one another. You might think of this as the connector — it allows electricity to travel from one part to another easily.

Having introduced what a PCB connector terminal block is, then let's talk about how to properly install it. Make sure you follow these steps closely to ensure they all run smoothly.

How to Properly Install a PCB Connector Terminal Block?

The first thing you will need to do is identify where on the PCB the terminal block needs to go. Check that the notches on the block align with the holes on the board. Gently force the KEFA pcb to pcb connector down, and pay attention not to bent a pin.

Then solder the pins onto the board with a soldering iron. It requires adult supervision though, as soldering irons can heat up so much that they burn you. When all the pins have been soldered accordingly, you may also wish to check your work to ensure that there are no loose connections.

Why choose KEFA Pcb connector terminal block?
